Living Room Recessed Lighting Upgrade Raleigh, NC
At a single-family home in Raleigh, North Carolina, eight Halo ultra-thin LED recessed lights were installed in the living room and two additional lights were installed near the bookshelf/hallway, using the existing recessed lighting circuit and dimmer after removing two older high-hat fixtures.
- Living room recessed lighting (Halo ultra-thin LED)
- Existing dimmer circuit reused (4000K selected)
- Layout routed around an existing metal beam
Project Overview
This phase of the remodel added ten Halo ultra-thin LED recessed lights in the living room area and replaced two older recessed fixtures. All new wiring and new recessed fixtures were installed, while power was taken from the existing recessed-light circuit already on a dimmer.
- Project Type: Recessed lighting upgrade
- City: Raleigh, North Carolina
- Home Type: Single-family home
- Project Location: Living room
Project Details
The lighting work included a recessed lighting upgrade and new recessed lighting installation in the living room, improving brightness and coverage while keeping drywall cuts to a minimum. The new layout reused an existing dimmer-controlled lighting circuit after removing older recessed fixtures, and the final setup delivers clean, modern, fully dimmable LED lighting throughout the space.
- Lighting Scope: Installed 10 ultra-thin LED recessed lights in the living room area for improved coverage and a cleaner, modern look.
- Layout Plan:Installed as two main groups of 4 lights, plus 2 additional recessed lights near the bookshelf/hallway transition.
- Power Source: Reused the existing recessed lighting circuit to power the new layout (no new circuit added).
- Existing Fixtures: Removed 2 older recessed “high-hat” style fixtures and repurposed that circuit for the new recessed lights.
- Dimming Control: Kept dimmer control in place and ensured all new recessed lights are compatible and dim smoothly.
- Fixture Specifications: Halo ultra-thin LED recessed lights with selectable color temperatures, set to 4000K.
- Routing Challenge: Routed wiring around an existing metal beam in the living room to connect the lighting groups cleanly.
- Access & Repairs: First-floor installation with a finished level above, so openings were minimized to reduce drywall patching.
Work Process
The installation followed a three-step process to complete a Recessed Lighting Upgrade Raleigh, NC in the living room, reuse the existing dimmer-controlled circuit, and deliver clean, evenly spaced, fully dimmable Halo ultra-thin LED lighting with minimal drywall cutting.
Layout planning and circuit verification
We confirmed the homeowner’s layout (spacing from walls, spacing between lights, and placement of the two lights near the bookshelf/hallway) and identified the existing circuit that would feed the new recessed lights. Power was shut off at the switch, and the circuit was verified de-energized using test tools before any work began.
Cut-in, wiring, and obstacle routing
We marked the ceiling for the agreed layout, then cut the recessed openings. Using those same openings, we drilled and routed new wiring—working around the metal beam and long spans—while keeping drywall cuts to an absolute minimum (only the recessed holes were needed).
Install, alignment correction, and final testing
We installed the Halo ultra-thin LED recessed lights using the spring clips, made up all connections, and restored power at the switch to test operation and dimming. One light was adjusted for alignment so the finished layout was straight and consistent, then the system was verified working properly.
Final Installation Photos
The photos documented the completed 200 amp electrical panel upgrade, showing the final exterior panel, meter base, and service configuration after installation.

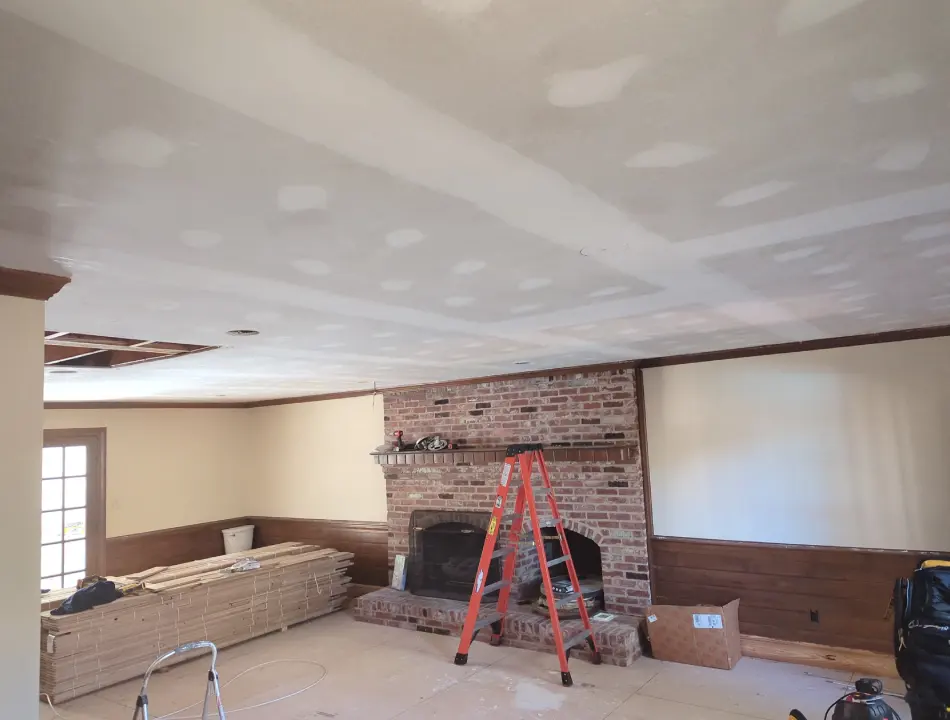

Ceiling Layout Markedl (Before)

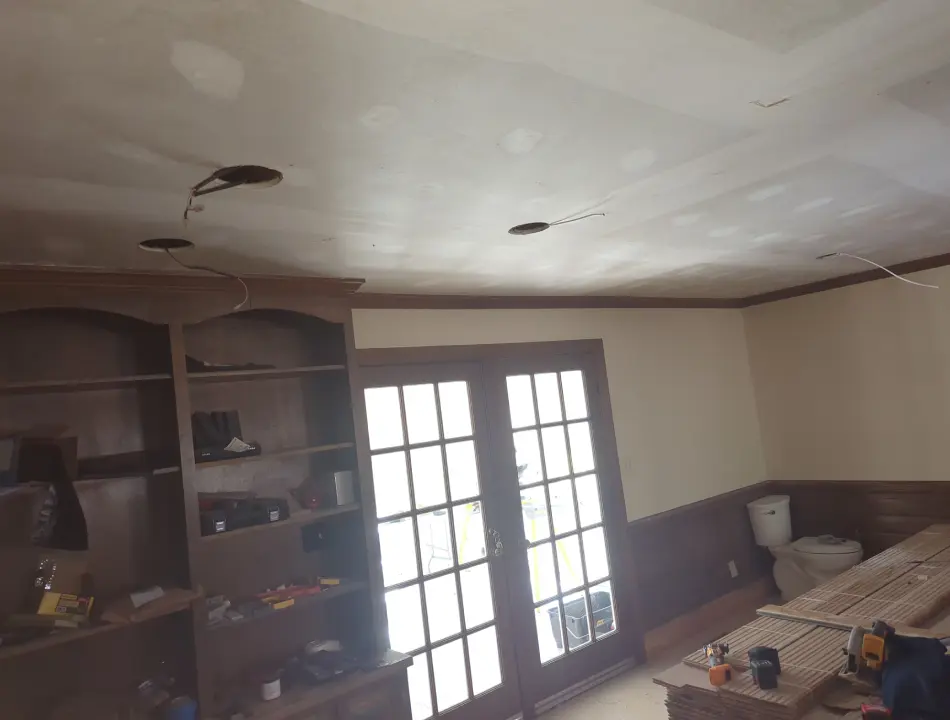

Room Overview (Before)

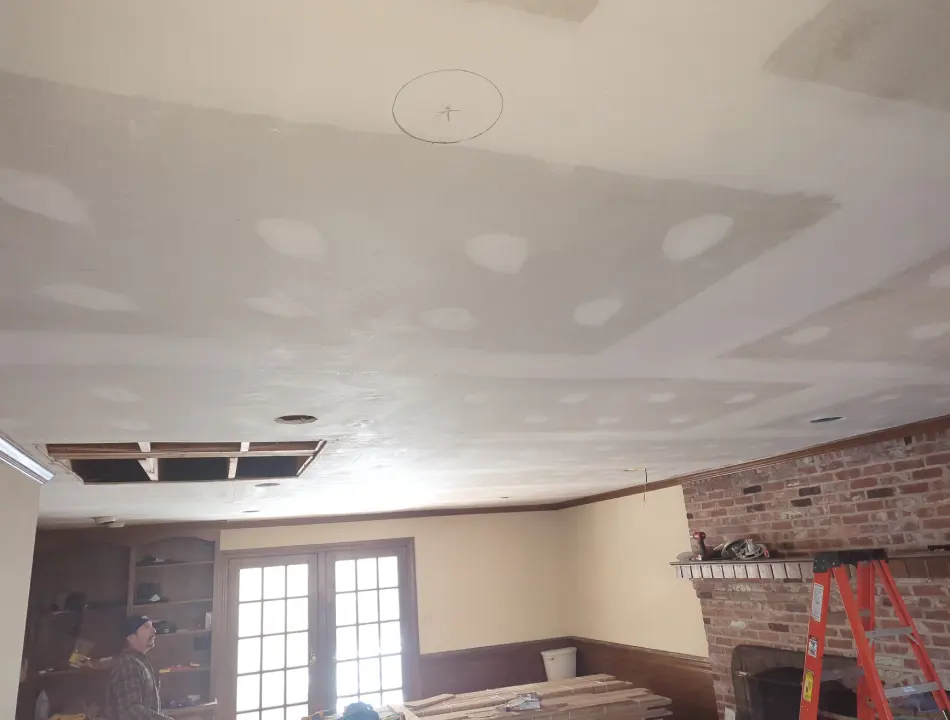

Existing Openings (Before)

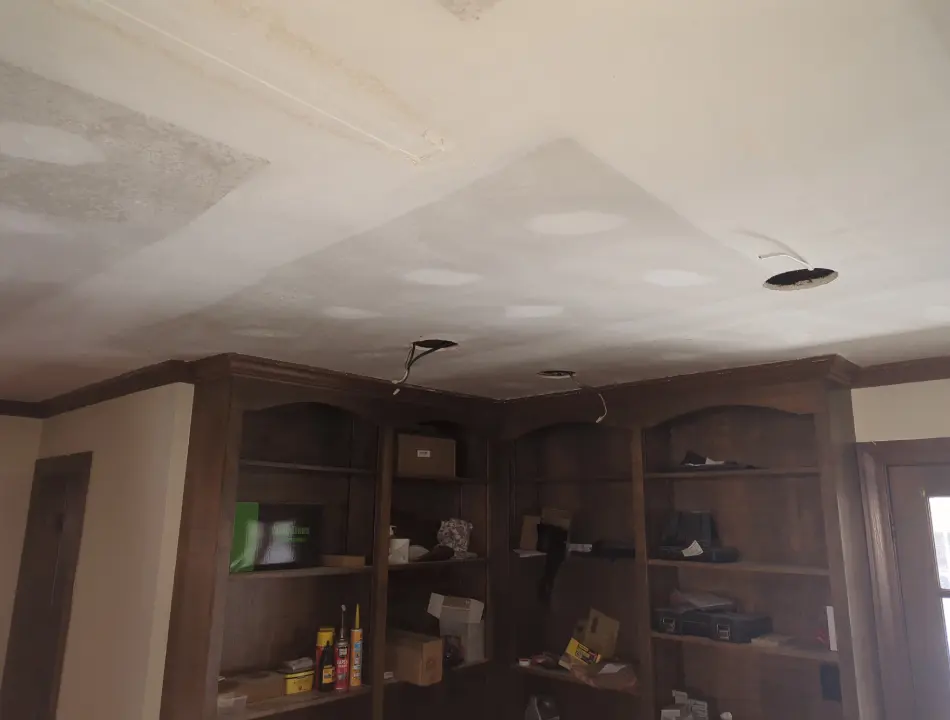

Wiring Access Openings (Before)
Basement Subpanel (After)

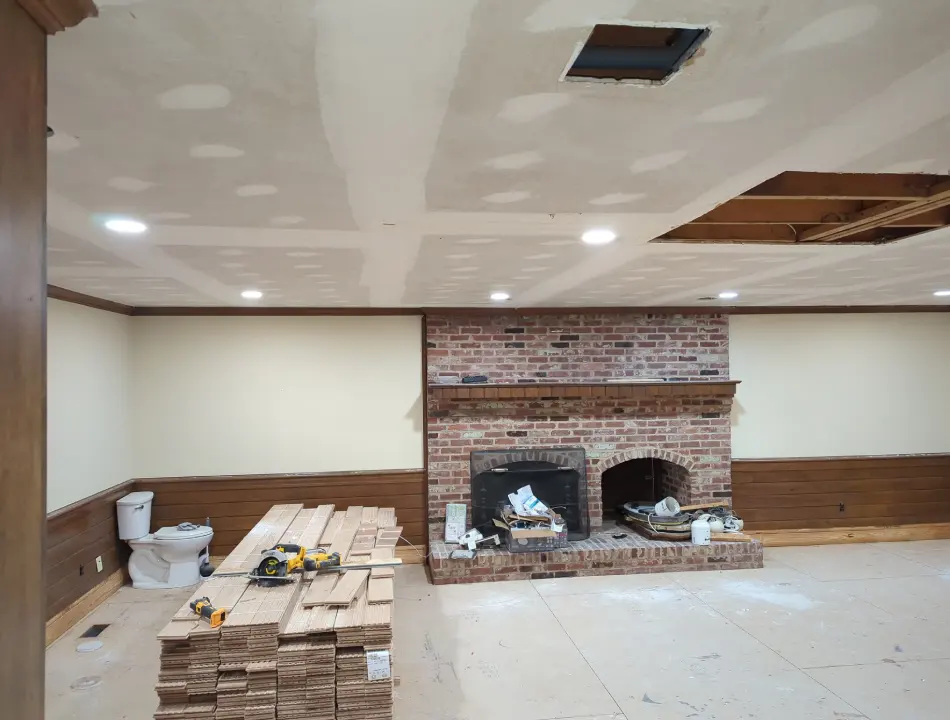

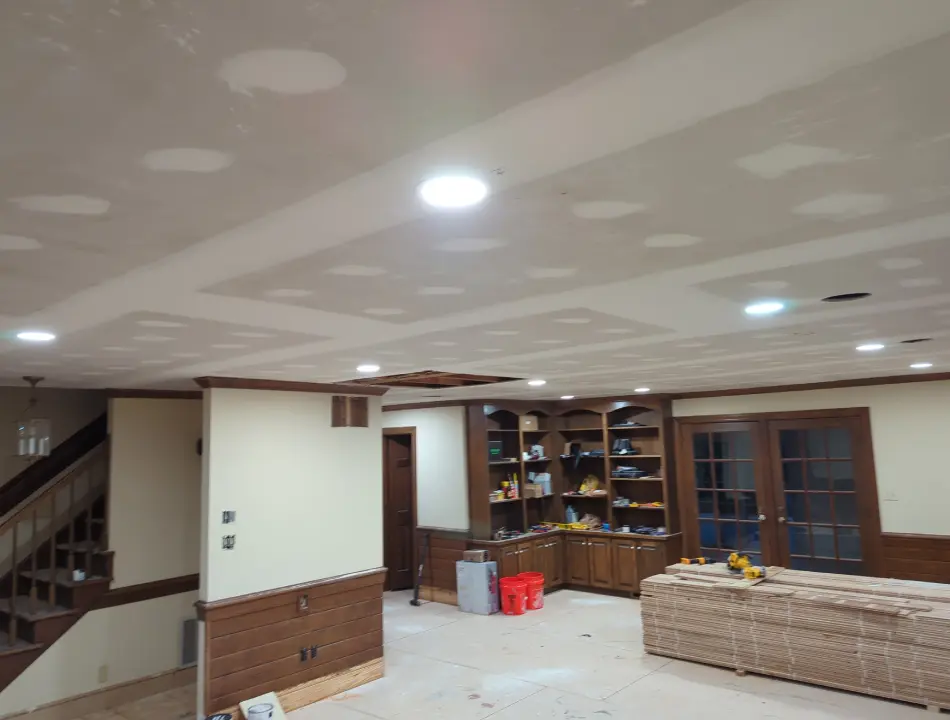

Wide Room Overview (After)

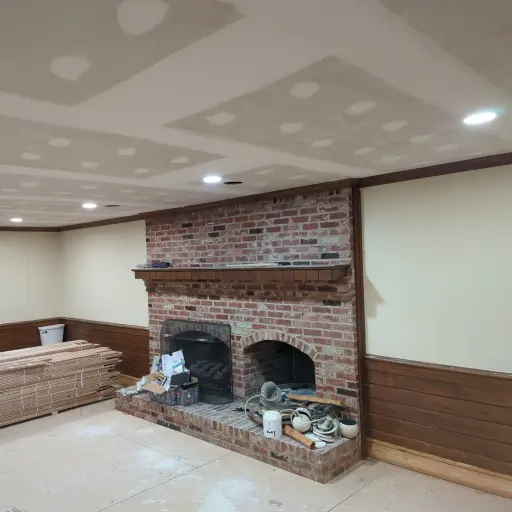

Fireplace Wall Lighting (After)

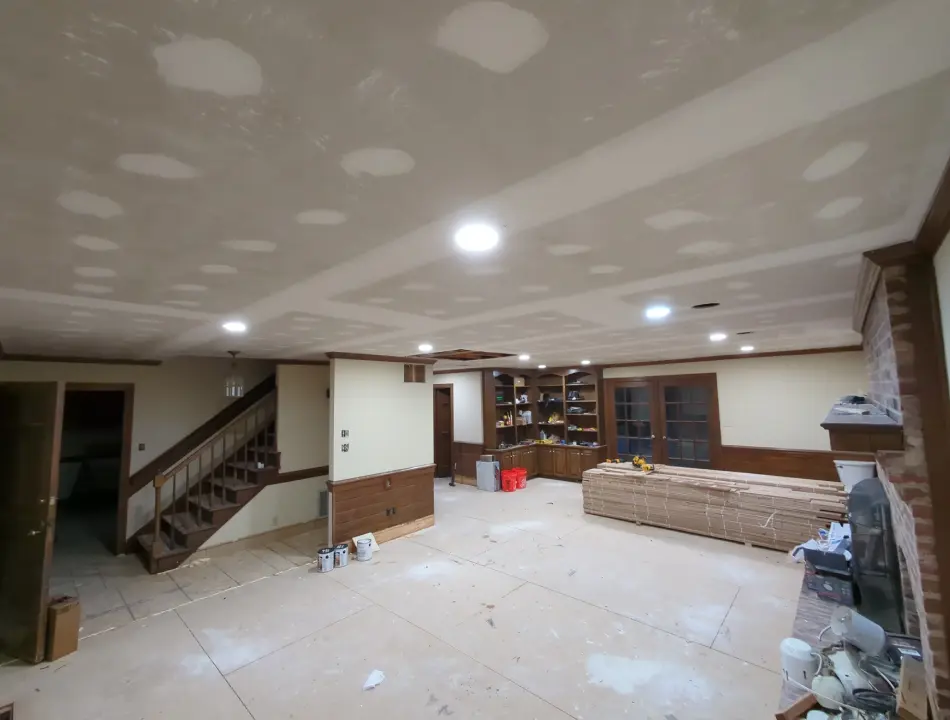

Living Room Final View (After)
Code & Safety Notes
Panel Capacity and Load Evaluation
Because the new recessed lights are low-wattage LED fixtures, the existing lighting circuit capacity was sufficient for the upgrade. The circuit was confirmed to be protected by a correctly sized 15-amp breaker.
Overcurrent Protection
Overcurrent protection remained in place using the existing 15-amp breaker—no changes were required to the panel or breaker configuration for this scope.
Grounding and Bonding
The existing switch location used as the power source was confirmed to be properly grounded, and all new connections were completed with grounding maintained throughout the installation.
Permits & Inspection
New wiring was installed using 14/2 Romex, appropriate for the 15-amp lighting circuit. No additional junction boxes were required for this installation.
What Was Included in This Installation
This installation included the planning, layout, and electrical work required to add and replace recessed lighting in the living room using an existing dimmer-controlled circuit, with minimal ceiling cutting and final testing for proper operation.
Evaluation and Layout Planning
The room was evaluated for spacing, placement, and routing, and the recessed lighting layout was marked to match the homeowner’s plan.
Recessed Light Installation
Halo ultra-thin LED recessed lights were installed and secured using spring clips, with color temperature set to 4000K.
Existing Fixture Removal
Two older recessed fixtures were removed so the existing circuit could be repurposed for the new recessed lighting layout.
System Testing
The circuit was verified and tested at the switch to confirm proper operation and smooth dimming performance.
Wiring Installation
New 14/2 wiring was routed through the ceiling using the recessed openings to avoid extra drywall cuts while connecting the full lighting layout.
Final Review and Cleanup
The finished layout was checked for alignment, one light was adjusted for consistency, and the work area was left clean and ready for the next phase of the remodel.
