Completed Project

200 Amp Electrical Panel Upgrade
Raleigh, NC

We replaced an outdated 100-amp panel with a new 200-amp Siemens system, upgraded the service drop and meter base, and installed a basement subpanel for a safer, more reliable electrical system.

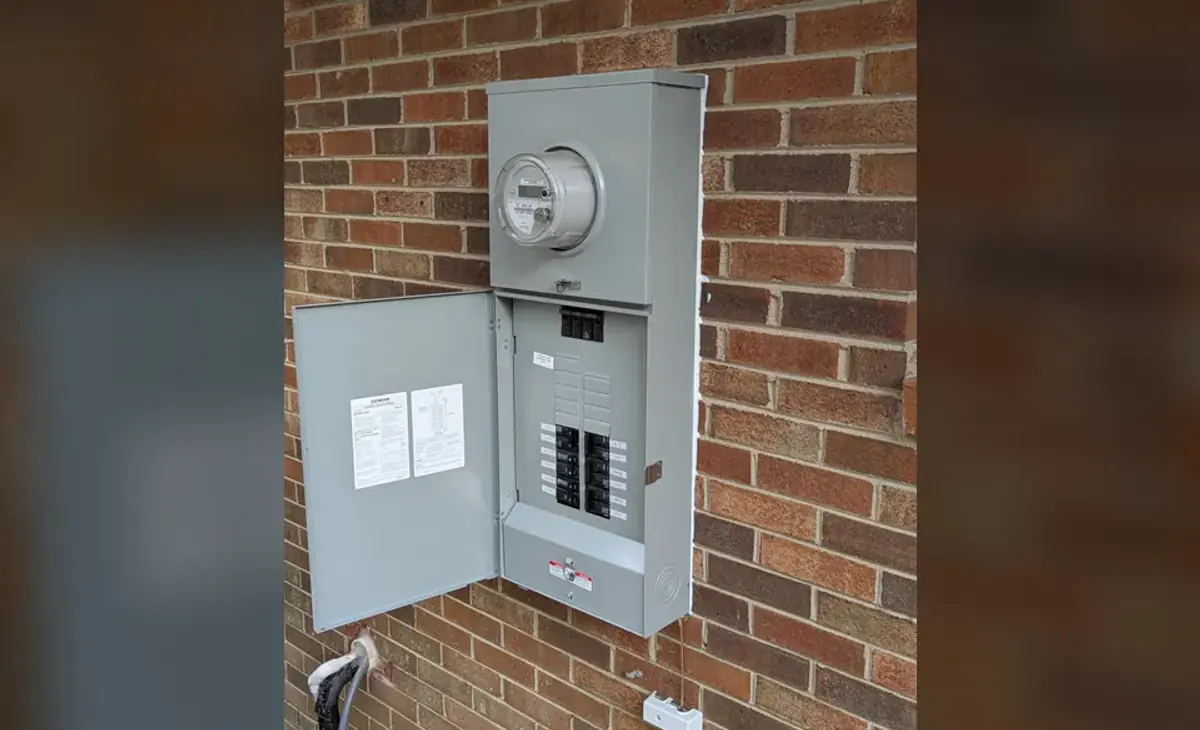

Completed exterior 200-amp Siemens meter-main panel upgrade at a Raleigh home
200 AmpNew Capacity
City Inspected& Approved
February 2026Completed
Single-FamilyHome
Request a Similar Upgrade Call (919) 670-4005

Project Snapshot

ServiceElectrical Panel Upgrade
LocationRaleigh, NC
Five Points 27608
PropertySingle-Family Home
1970s
Scope200A Panel Upgrade
Meter Base, Service Drop & Subpanel
Permit & InspectionCity of Raleigh
Permit & Final Inspection Passed
CompletedFebruary
2026
Project Overview

Project Overview

This Raleigh home had an older 100-amp electrical service that no longer met the demands of modern life. The system lacked the capacity needed for today’s appliances, devices, and future growth—creating safety risks and the potential for outages.

We upgraded the home to a new 200-amp Siemens electrical system with a modern exterior panel and meter base, improved overhead service, a basement subpanel, and upgraded grounding—delivering the safety, reliability, and capacity this home needs. The installation was completed cleanly and passed final inspection.

Problem

Older 100-amp service with limited capacity and potential safety concerns.

Solution

New 200-amp Siemens panel system with meter base, service drop, and basement subpanel.

Result

Safer, cleaner, and inspection-ready electrical service built to last.

Project Story

Completed 200 amp Siemens meter-main electrical panel installed on a brick home in Raleigh, NC
Home TypeSingle-Family Home
Original Service100-Amp
Upgraded Service200-Amp Siemens
Inspection StatusFinal Inspection Passed
OutcomeSafer, more reliable power
Scope of Work

What We Installed and Upgraded

We replaced outdated and undersized electrical equipment with a modern 200-amp Siemens system, improving capacity, safety, and long-term reliability.

More CapacityReady for today and the future
Improved SafetyNew equipment and protections
Built to CodePermit pulled and inspection passed

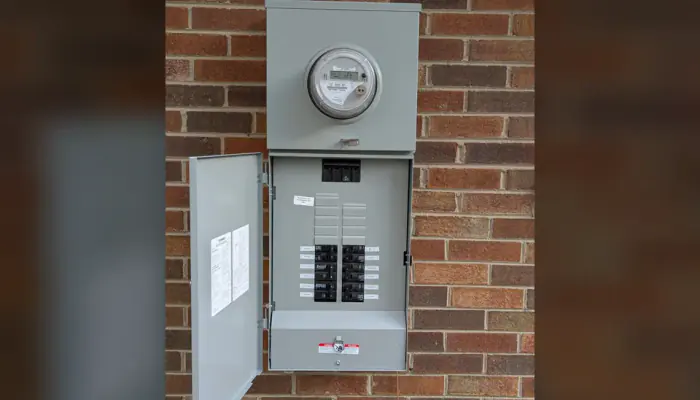

Completed Siemens 200-amp meter-main panel open on the brick exterior of a Raleigh home

Work Included

Installed new 200-amp Siemens exterior panel with 42 spaces
Installed new meter base and disconnect
Installed new overhead service drop
Upgraded grounding system for improved safety
Installed basement subpanel for expanded circuits
Corrected existing wiring issues as needed
Labeled all breakers and circuits for clarity
Cleaned work areas and removed old equipment

All work completed to meet NEC and local code requirements

Equipment Upgraded

Siemens 200-amp electrical panel installed for a Raleigh, NC home Siemens 200A Panel42-space main breaker panel built for reliability and performance.
New 200-amp meter base and service disconnect installed in Raleigh, NC Meter Base & DisconnectNew meter base with integrated 200A disconnect.
Overhead 200-amp electrical service drop conductors and weatherhead Service DropNew overhead service drop rated for 200 amps.
Labeled basement electrical subpanel installed during a Raleigh panel upgrade Basement SubpanelNew subpanel to support additional circuits and future needs.
Project Execution

Our Work Process

A safe, code-compliant installation requires more than just equipment. Here’s how we executed this 200-amp panel upgrade from start to finish.

Safety FirstEvery step follows NEC standards
Code CompliantPermits pulled and inspected
Quality GuaranteedBuilt to last. Built right.
1

Onsite Estimate & Scope Definition

We performed a detailed onsite evaluation of the existing electrical system, panel condition, wiring, and service entrance. The scope of work was defined, including the new exterior panel, meter base, overhead service drop, and basement subpanel. Permits were coordinated before any removal began.

Electrician documenting the existing meter and electrical panel during an onsite 200 amp upgrade estimate in Raleigh, NC
2

Panel Removal & New Installation

The existing 100-amp panel was de-energized and removed. We installed a new Siemens 200-amp panel and meter base on the exterior left side of the home. The basement subpanel was installed and wired. All branch circuits were reconnected, tested, and labeled for clarity.

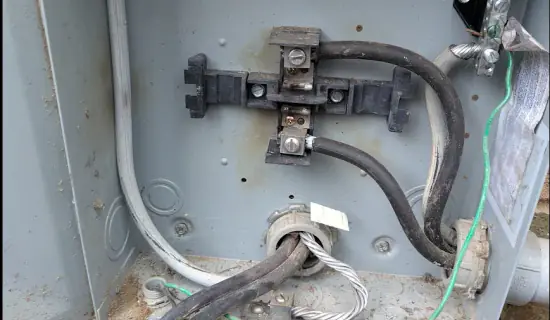

Existing meter base interior and service conductors exposed after electrical panel removal in Raleigh, NC
3

Grounding, Reconnection & Inspection

A new grounding connection was added for the gas system adjacent to the panel. InterSystem bonding was completed. We reconnected the new overhead service drop and performed final testing. The installation passed City of Raleigh inspection and is now ready to deliver safe, reliable power.

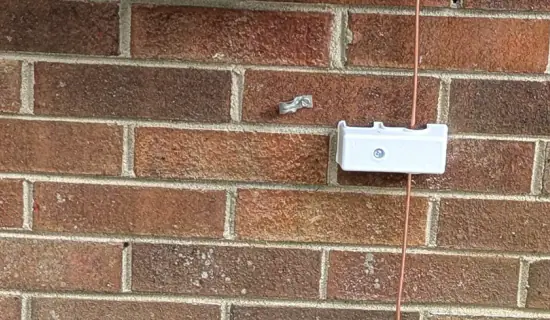

InterSystem bonding terminal and copper bonding conductor installed beside a 200 amp electrical panel in Raleigh, NC

Permits Pulled. Inspection Passed. Done Right.

This upgrade is built to NEC code and inspected by the City of Raleigh for your peace of mind.

Inspection Passed
Project Documentation

Final Installation Photos

These photos showcase the completed 200-amp electrical panel upgrade at a Five Points residence in Raleigh, NC. Select any image to inspect the installation details at full size.

Completed Upgrade 200-amp Siemens electrical system
Code Compliant Permits pulled and inspection passed
Real Project Click any photo to expand

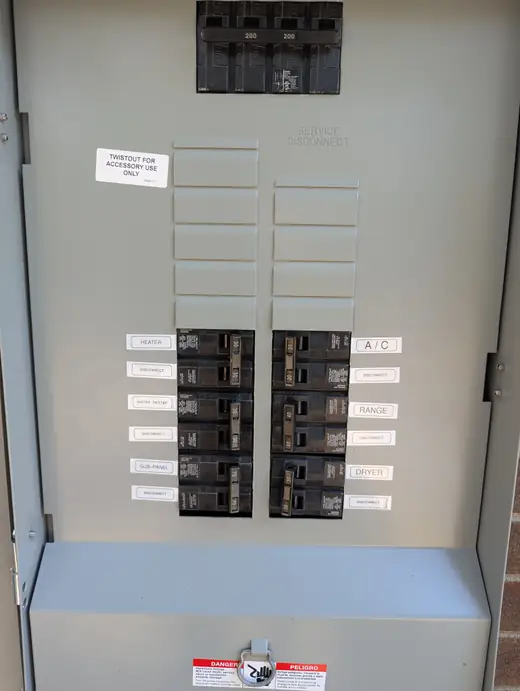

1 Labeled Breakers & Main Disconnect

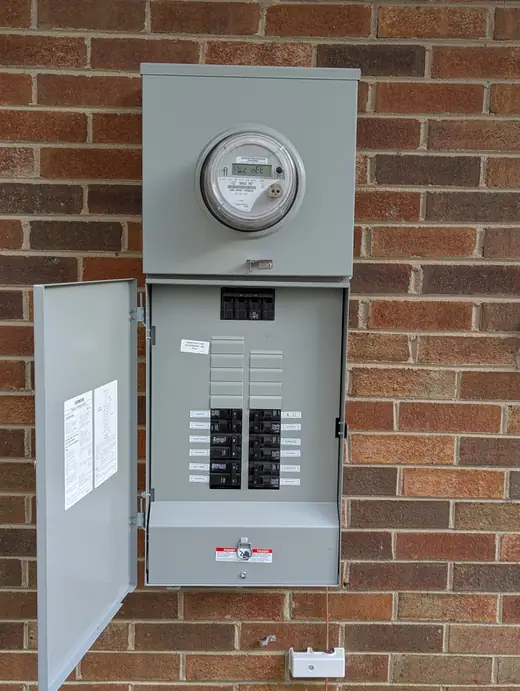

2 Open Meter-Main Panel

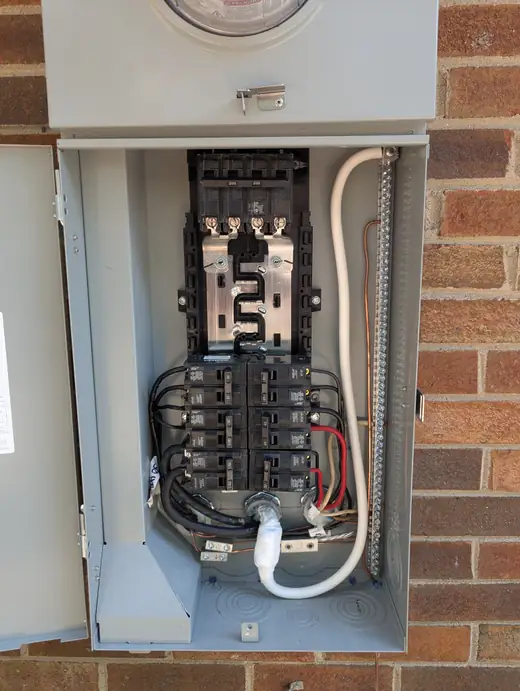

3 Panel Interior & Conductors

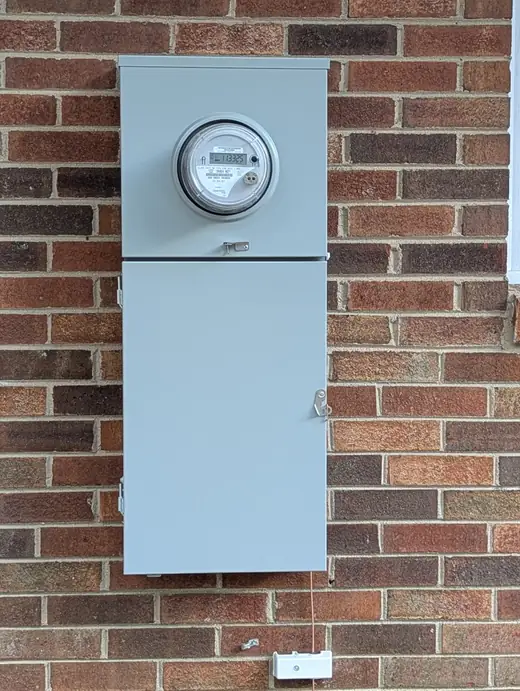

4 Closed Meter-Main Enclosure

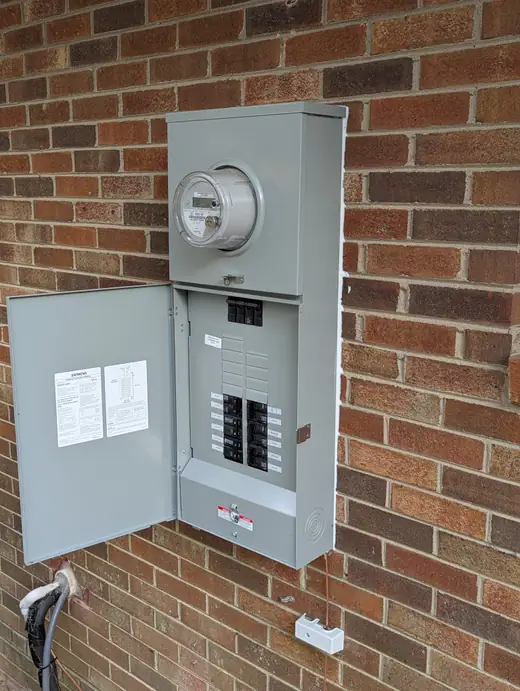

5 Completed Panel — Angle View

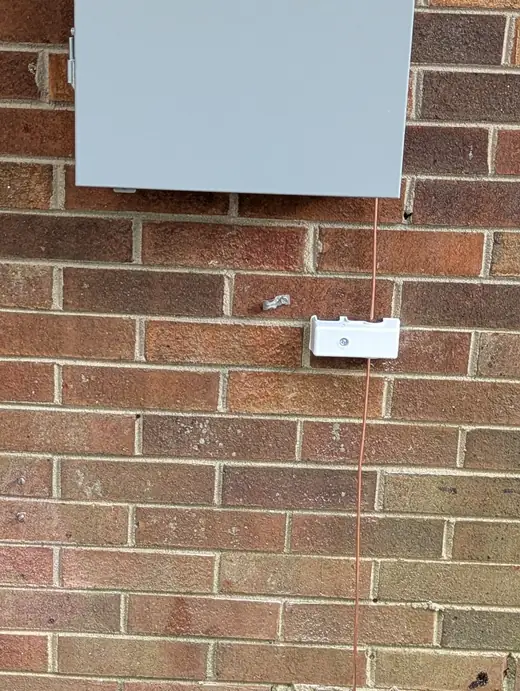

6 Intersystem Bonding Terminal

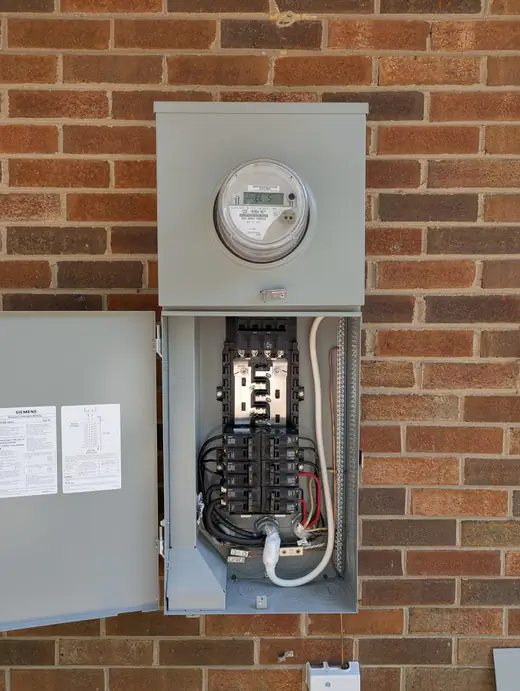

7 Full Panel Interior

Code & Safety

Code & Safety Notes

Safety and code compliance are at the core of every project we do. This 200-amp upgrade was designed and installed to meet NEC standards and City of Raleigh requirements.

SAFE. COMPLIANT. INSPECTED.Installed to NEC standards and approved by the City of Raleigh.

Panel Capacity & Load CalculationThe existing panel capacity was evaluated and a load calculation was completed to confirm that a 200-amp service will meet the electrical demands of the home, now and in the future.
200-Amp Overcurrent ProtectionA 200-amp main breaker provides overcurrent protection for the entire service, ensuring that the system shuts down safely in the event of an overload or short circuit.
Grounding & BondingTwo ground rods were installed with #6 bare copper conductors. Intersystem bonding was completed to connect the electrical, gas, and communications grounding systems.
Permit & City InspectionAn electrical permit was pulled prior to work. The completed installation passed final inspection by the City of Raleigh, confirming compliance with all applicable codes.

Built to Code. Built to Protect.

This installation meets or exceeds NEC standards and local code requirements for long-term safety and reliability.

Inspection PassedCity of Raleigh
Installation Value

What Was Included With This Upgrade

A complete 200-amp panel upgrade includes more than just a new panel. From planning and permitting to professional installation, testing, cleanup, and documentation, we deliver a safer, cleaner, inspection-ready electrical system you can trust.

Site EvaluationExisting service equipment, wiring, panel condition, and project scope were reviewed before work began.
Permit & Inspection SupportThe project was handled with City of Raleigh permit and final inspection requirements in mind.
Panel & Meter EquipmentNew 200-amp Siemens exterior panel and meter base equipment were installed.
Breaker LabelingCircuits were reconnected, organized, and labeled for easier homeowner reference.
System TestingThe installation was tested for safe operation, correct voltage, and proper circuit function.
Cleanup & WalkthroughOld equipment and debris were removed, and the finished installation was reviewed.

Complete upgrade package: evaluation, equipment, installation, testing, cleanup, and final inspection support.
