Siemens 200-Amp Service Replacementin Hayes Barton, Raleigh
A homeowner in Hayes Barton, Raleigh, called us after the breaker at the outside meter and several breakers in the house panel burned out. We carried out a full service replacement, installing a new meter base combo, a new interior panel and a 200-amp service.

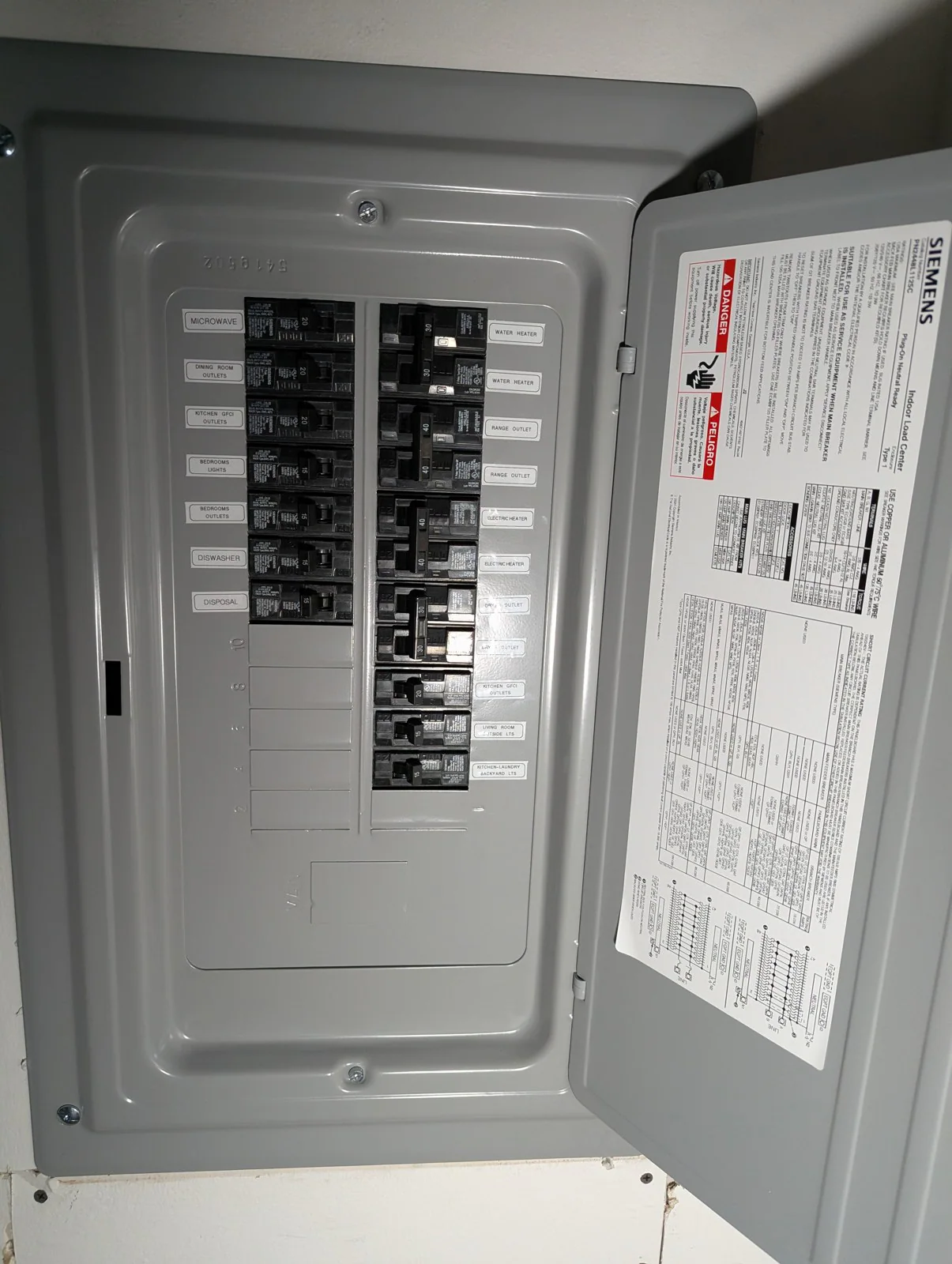

The new interior panel with its breakers installed and a label in place at the completion of the work.
Before and After
The original equipment as found, before the full service replacement began.The new interior panel with its breakers installed and a label in place at the completion of the work.
What We Found
The breaker at the outside meter and breakers in the interior panel had burned out. The existing meter base and its main breaker were undersized and not rated for the house, and the air conditioning unit appeared to be drawing more power than the service could supply.
What We Did
We replaced the outside meter and meter base with a Siemens meter base combo that provides a 200-amp service.
We replaced the interior electrical panel with a new Siemens panel.
We completed the wiring at the wall opening as part of the full service replacement.
We installed a Square D whole-house surge protector at the homeowner's request.
We labelled the circuits on the new panel, including those for the kitchen, bedrooms and laundry.
We recorded the circuit layout in a handwritten panel directory for the homeowner.
The Result
The home now has a 200-amp service sized for the demands of the house, with a new interior panel on which every circuit is clearly labelled. A whole-house surge protector now also protects the electrical system.
The work was permitted and passed inspection.
What We Installed
Siemens electrical panelNew interior panel with labelled breakers and a handwritten circuit directory.
Siemens meter base comboExterior meter base combination unit providing a 200-amp service.
Square D whole-house surge protectorWhole-house surge protection added at the homeowner's request.
The Job, Photo by Photo
11 photos from the job. Tap any photo to see it full size.

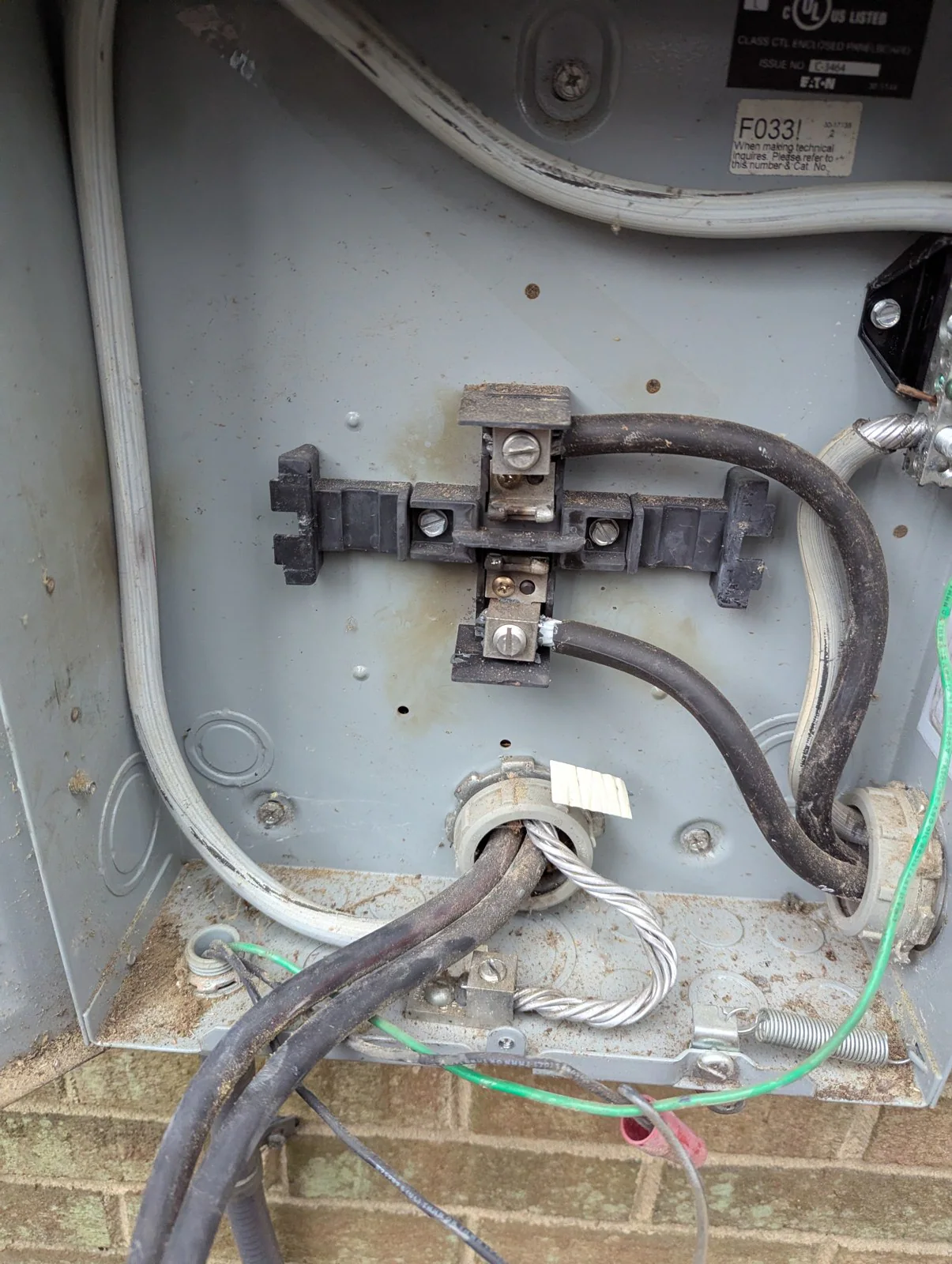

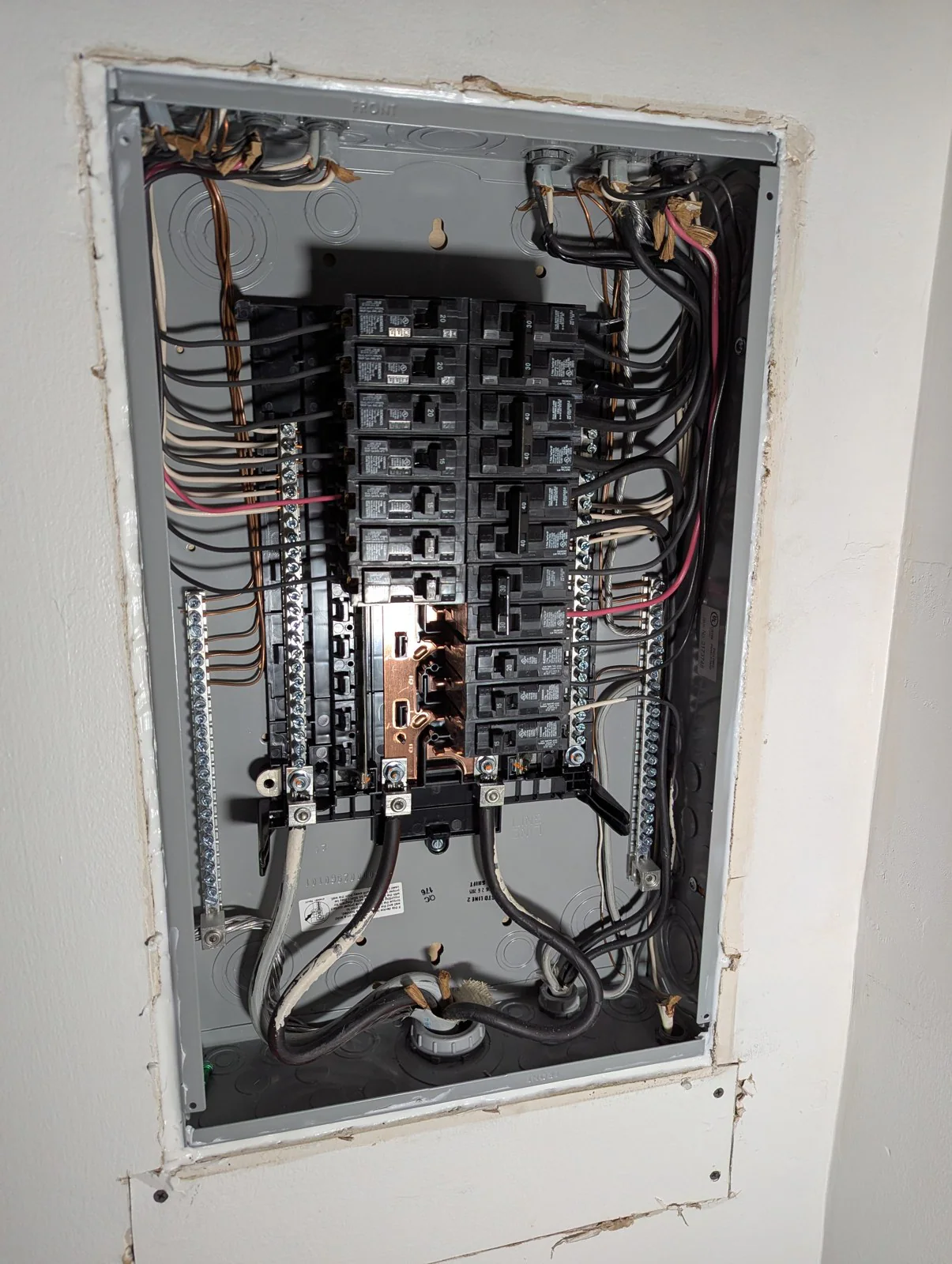

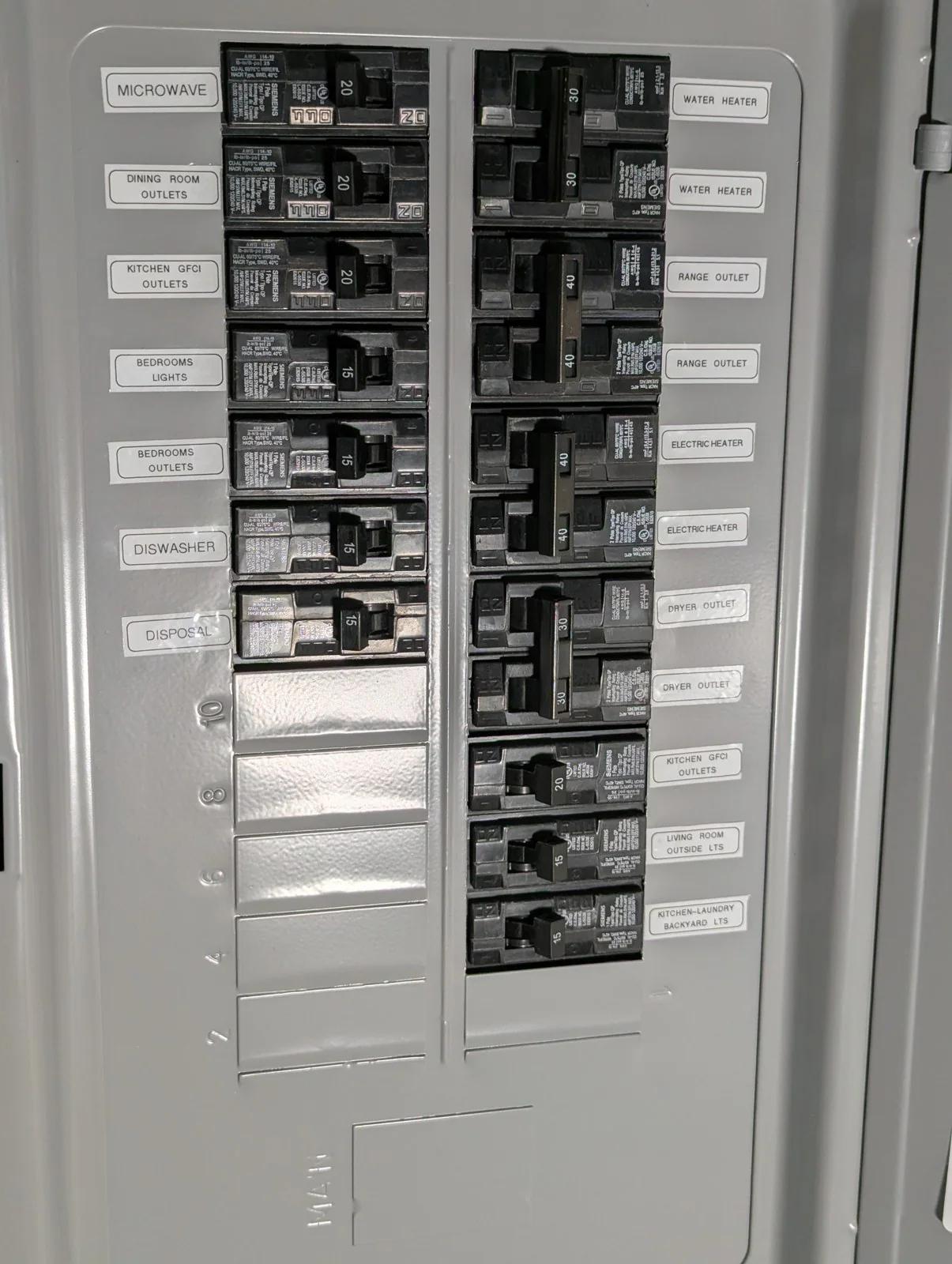

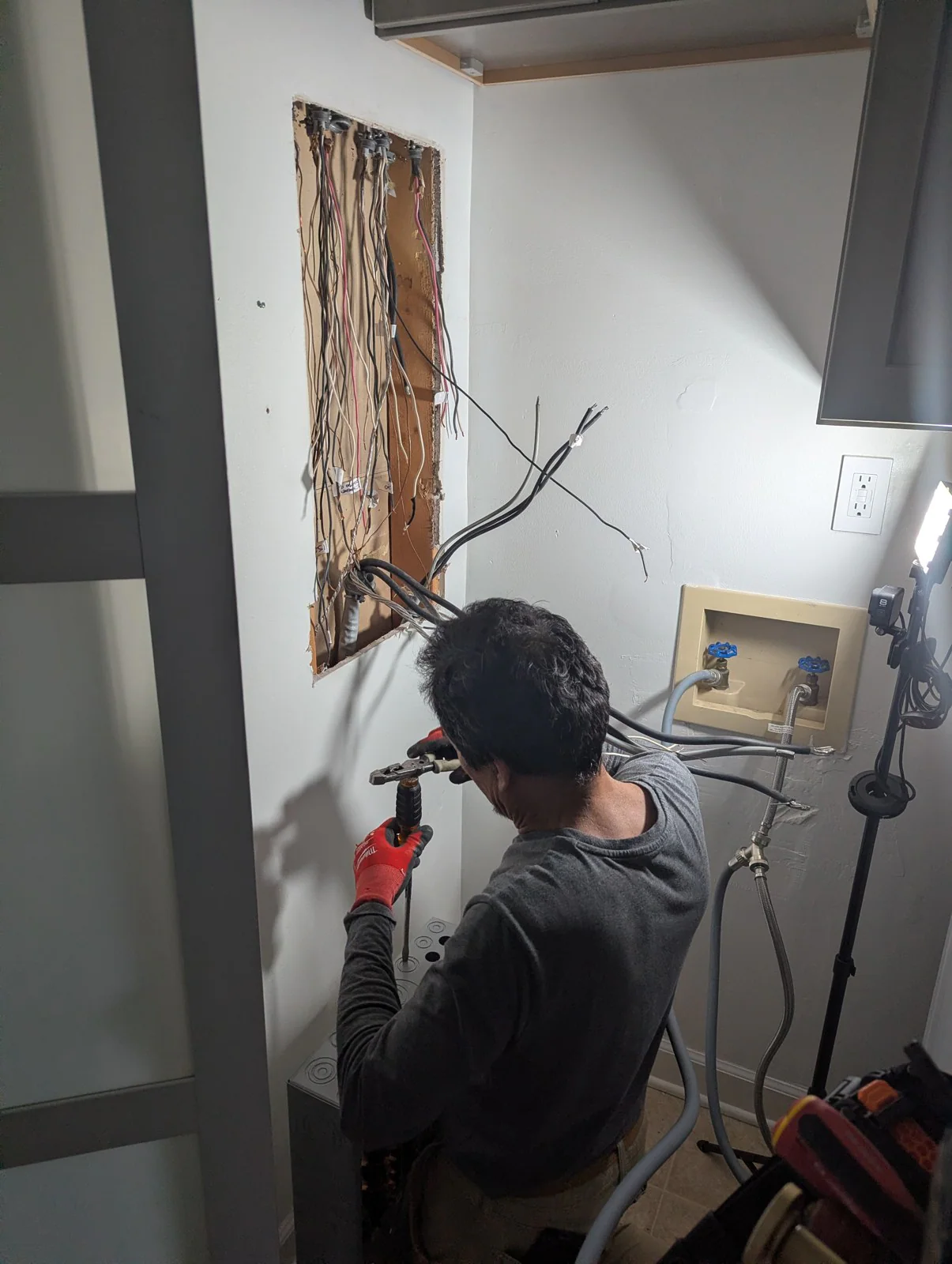

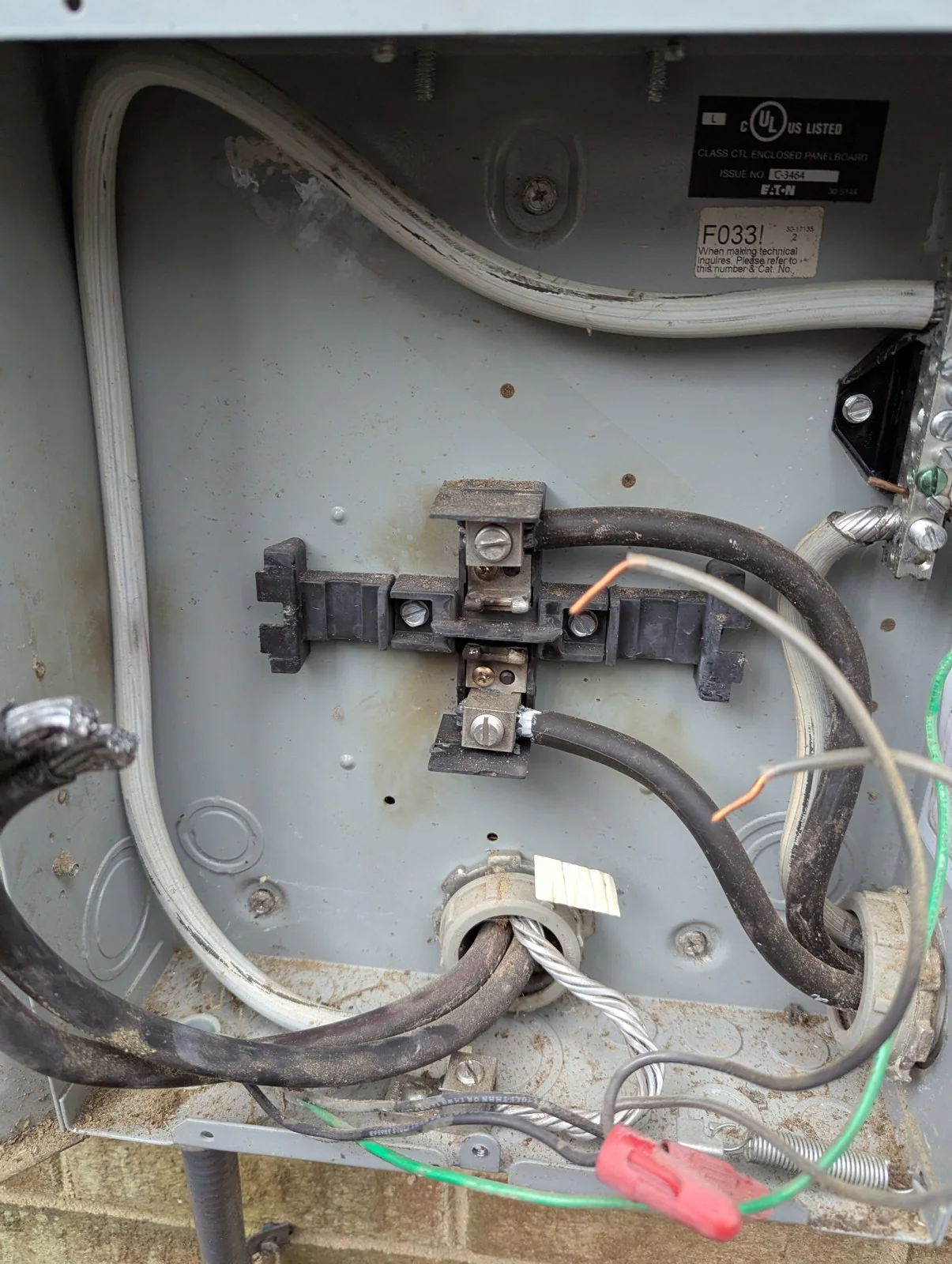

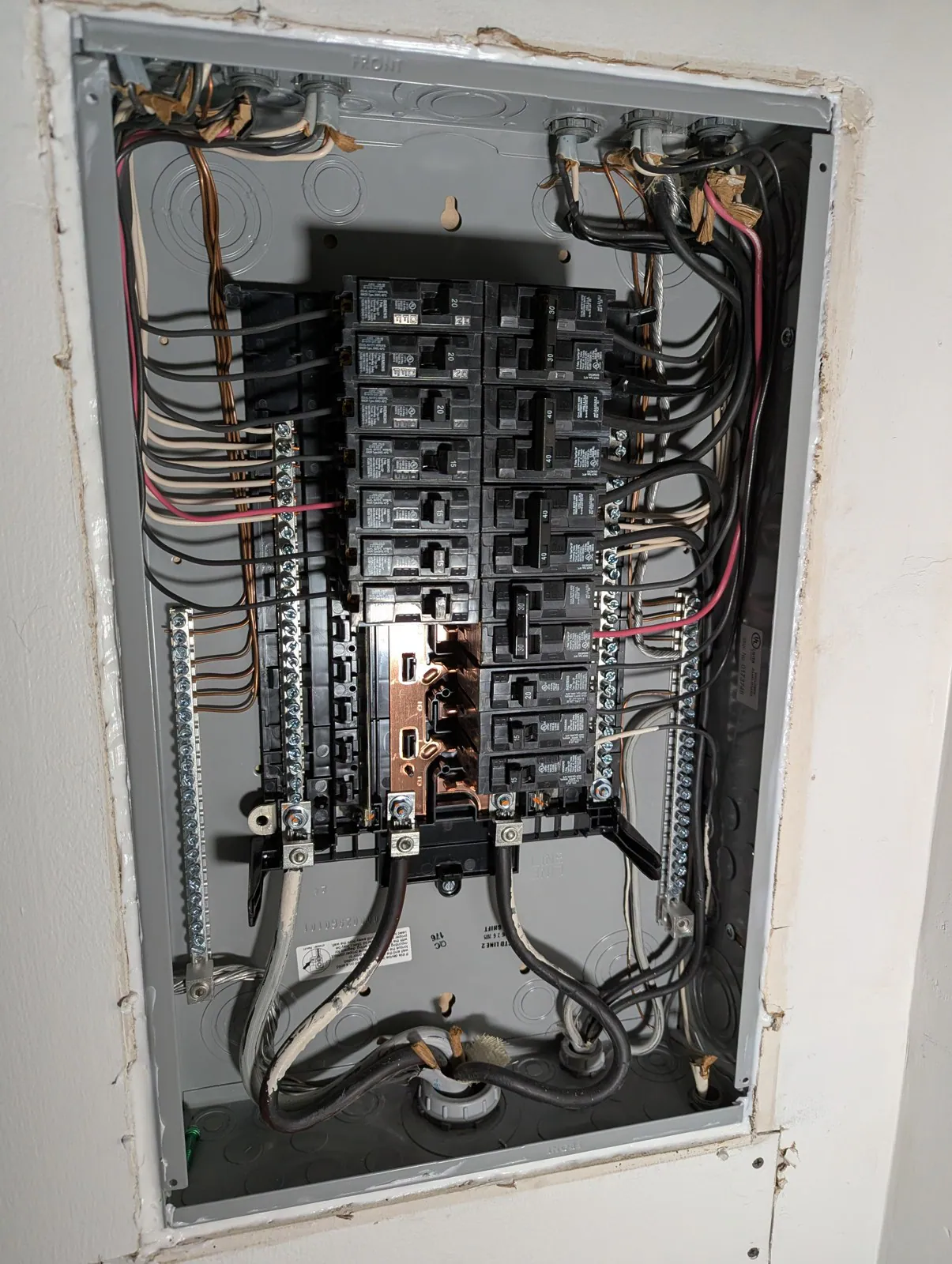

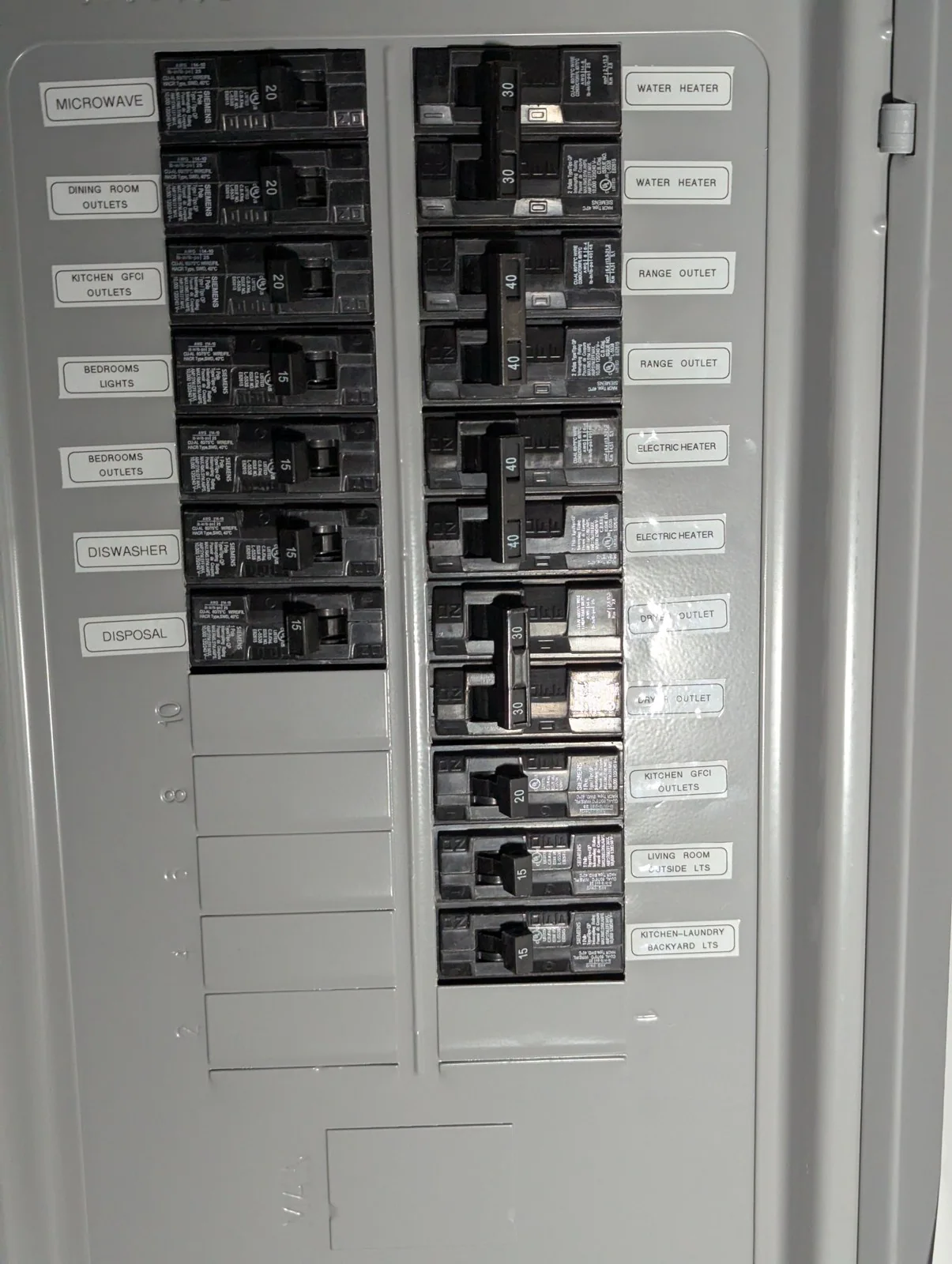

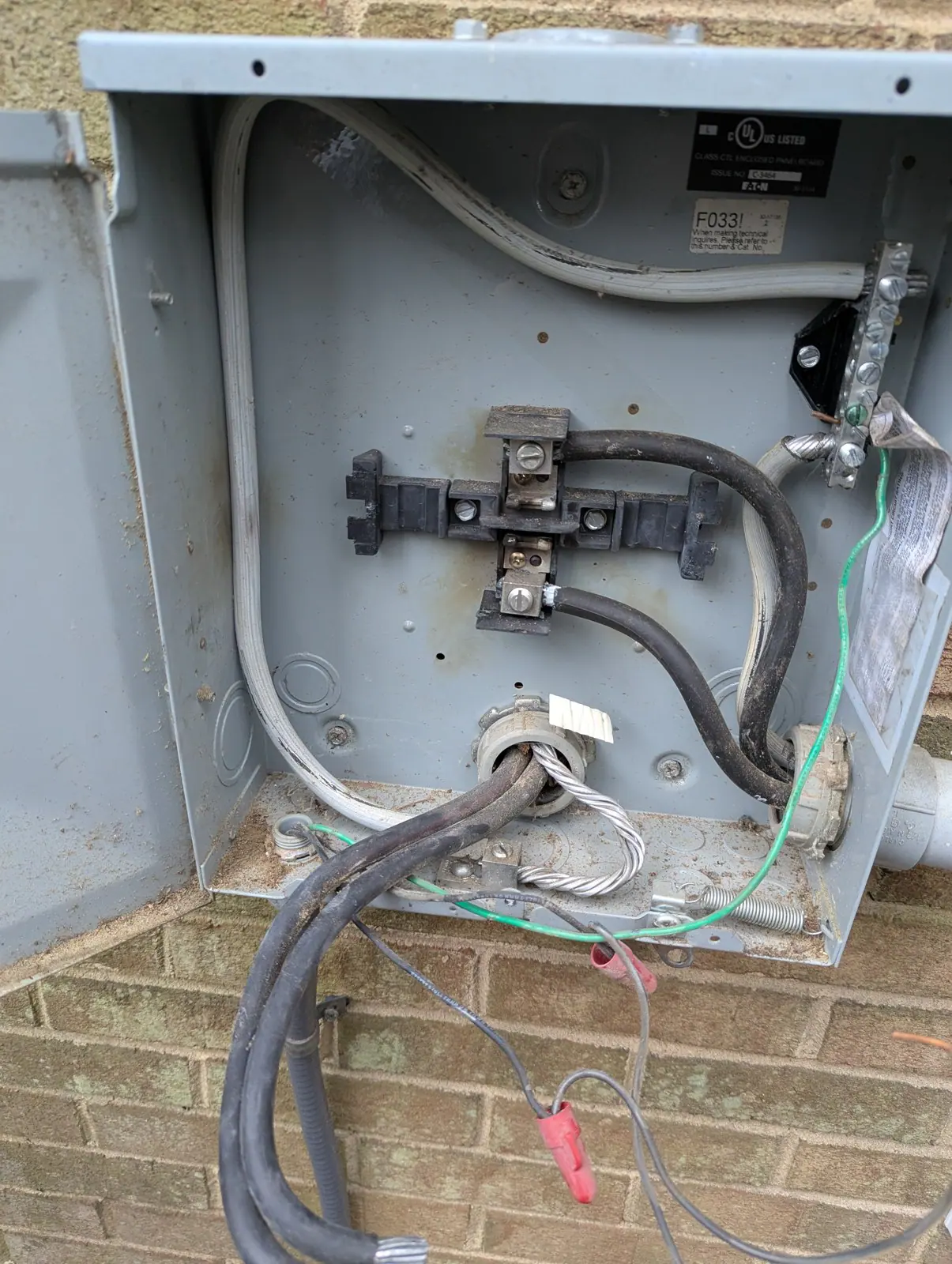

The new interior panel with its breakers installed and a label in place at the completion of the work.The handwritten panel directory, recording the circuit layout of the new panel for the homeowner.Work under way on the wiring at the wall opening during the full service replacement.An electrical enclosure open with its conductors exposed while the replacement was in progress.The exterior equipment on the brick wall, opened with its wiring exposed while the outside work was under way.The exterior equipment at the completion of the work, shown with its cover open and the wiring visible.The original equipment as found, before the full service replacement began.A further view of the original installation, which was not rated for the electrical demands of the house.The completed panel with its circuits labelled for the kitchen, bedrooms and laundry.The breaker labelling on the finished panel, which allows the homeowner to identify each circuit.The Siemens label on the new panel, identifying the equipment installed in the home.
