Most homes with 200A service can support a Level 2 EV charger without a panel upgrade. Homes with 100A panels or panels near capacity usually need an upgrade first. A load calculation — not breaker math — gives the final answer.
You just bought a Tesla, a Rivian, or an Ioniq — or you’re still deciding, and you want to know one thing first: can your house handle a Level 2 charger, or is a $4,000 panel upgrade hiding behind a “simple” install? We see this every week in Raleigh. This guide helps you figure out where you stand before the electrician even shows up.
What Panel Size Do You Need for an EV Charger?
A Level 2 charger needs a dedicated 40–50A circuit — so your panel needs that much available capacity. The total rating on the main breaker isn’t what’s available: HVAC, water heater, oven, and dryer each claim their share first.
Usually enough
A 200A panel typically has capacity for a 40–50A EV charger circuit — as long as existing load hasn’t consumed most of it. A load calculation confirms it.
Gray area
Some 150A panels can support a charger; others can’t. It depends entirely on your existing load. Don’t guess — get a load calculation first.
Plan for an upgrade
A 40–50A charger would consume up to half the panel’s total capacity on one circuit — not feasible for a home that also runs HVAC, a water heater, or a dryer.
How to Check If Your Panel Has Available Capacity
A basic visual check won’t replace a professional load calculation, but it gives you a rough idea of where you stand — open only the hinged door, never the cover.
-
Find your main breaker rating
Open the panel door (not the cover). The main breaker at the top reads 100, 150, or 200 — your panel’s total amperage. If it says 100, an upgrade is very likely.
-

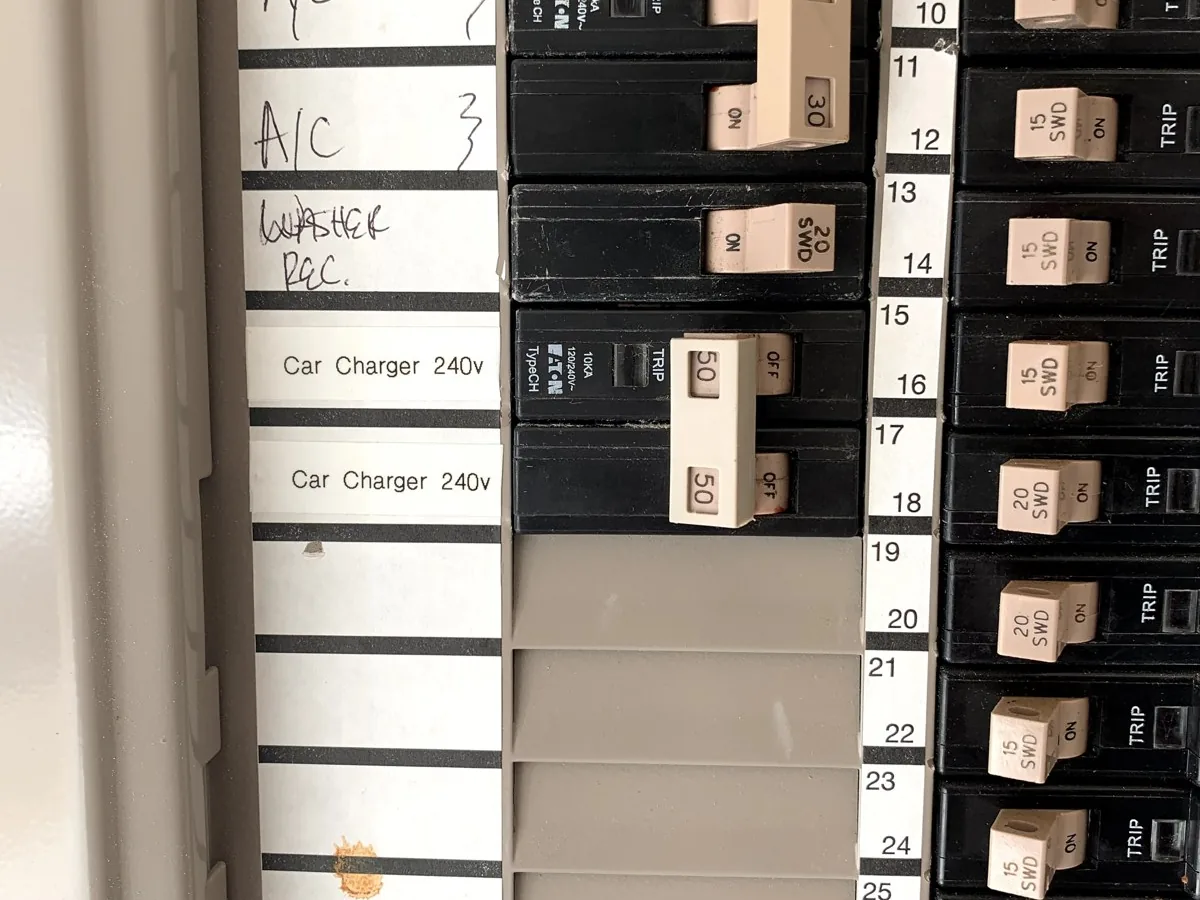

Count open breaker slots
An EV charger needs a double-pole breaker — two adjacent open slots. Zero open slots means a subpanel or panel upgrade.
-
Note your large 240V loads
HVAC (30–60A), water heater (30A), dryer (30A), range (40–50A). Several of these on any panel means a professional load calculation is the next step.
What Happens If Your Panel Is Too Small?
Two paths — both permitted, both professional installs. The right one depends on the panel’s total amperage and condition.
Option 1: Panel Upgrade
The most common solution — and the most future-proof.
- What it is
Replaces the entire panel — typically 100A or 150A up to 200A. - Best when
The panel is undersized, aging, or you want headroom for future additions. - Involves
Utility coordination with Duke Energy for disconnect/reconnect — we handle it.
Option 2: Sub-Panel
More slots without replacing the main panel.
- What it is
Adds circuit capacity beside a healthy main panel — less disruptive, usually cheaper. - Best when
Your 200A main panel has no open slots but plenty of total amperage to spare. - The catch
If the panel is already near capacity, a subpanel won’t solve the underlying problem.
| Service | Estimated Cost |
|---|---|
| Level 2 charger install (panel ready) | $800 – $1,800 |
| Level 2 charger + panel upgrade | $4,500 – $5,000 |
| Sub-panel addition | $1,200 – $2,500 |
100A vs 200A Panel — Does It Matter for EV Charging?
Yes — service size is often the deciding factor in whether your home can support a charger without additional work.
| Panel | Typical Era | EV Charger Outlook |
|---|---|---|
| 100A | Standard before ~1980 | A 40–50A charger would take up to half the capacity — plan for an upgrade. |
| 150A | Common 1980s–1990s | Gray area — depends entirely on existing load. Load calculation required. |
| 200A | Current residential standard | Usually supports a Level 2 charger — confirmed by a load calculation in about 30 minutes. |
“Adding a 40–50A EV charger to a 100A panel would consume half the panel’s total capacity on a single circuit — that’s not feasible for any modern home.”
Load Management — Charging Without the Upgrade
For some borderline panels, smart load-management equipment lets you add a charger without new service. It isn’t right for every home — but when it fits, it saves thousands.
Smart splitters
Share an existing 240V circuit (like the dryer’s) between two loads — only one runs at a time. Good for garages where the dryer circuit is close.
Dynamic load controllers
Monitor whole-home draw in real time and throttle or pause charging when the house is busy. Lets a smaller service host a charger safely, per NEC 750.30.
Lower-amp charging
A 32A charger on a 40A circuit still delivers a full overnight charge for most drivers — and may fit where a 48A unit wouldn’t.
What Actually Happens in a Load Calculation
It’s not guesswork and it’s not breaker math. NEC Article 220 sets a standardized formula with demand factors — because not everything in your home runs at once.
- Square footage × 3VA for general lighting/receptacles
- Small-appliance and laundry circuits added
- Fixed appliances: water heater, dryer, range, HVAC
- Demand factors applied (everything doesn’t run at once)
- Largest motor load counted at 125%
- The EV charger added as a continuous load at 125%
- Total compared against your service rating
- Documented result — yes, no, or yes-with-load-management
Frequently Asked Questions
Clear answers to the most common questions about panel capacity and EV charging.
Does a 200A panel support a Level 2 EV charger?
In most cases, yes. A 200-amp panel has enough total capacity for a 40- or 50-amp EV charger circuit as long as the existing load doesn’t already consume most of the available amperage. A load calculation confirms whether you have room.
Can a 100A panel support an EV charger?
Rarely without an upgrade. A 40–50A charger circuit would consume up to half the panel’s capacity — not feasible alongside HVAC, a water heater, or a dryer. Load-management devices can sometimes help; a load calculation tells you.
What is a load calculation?
A standardized NEC Article 220 formula that adds up your home’s electrical demand (with demand factors) and compares it to your panel’s capacity. It’s the only reliable way to know what your panel can take on.
Do I need two open breaker slots?
Yes — a Level 2 charger uses a double-pole breaker that occupies two adjacent slots. No open slots means adding a subpanel or upgrading the panel.
What does it cost if my panel is ready vs. not?
Charger installation on a ready panel typically runs $800–$1,800. With a panel upgrade, plan $4,500–$5,000 combined. A subpanel addition runs $1,200–$2,500.
Are there tax credits for this work?
Not from the federal government anymore. The 30% federal credit for home EV chargers (up to $1,000) ended for chargers installed after June 30, 2026. Ask your utility whether it has a current rebate before you buy.
Should I upgrade the panel or add a subpanel?
Upgrade when the panel is undersized or aging; subpanel when a healthy 200A panel is just out of slots. The load calculation and panel condition make the call — we walk you through both prices.
Can load management let my 100A or 150A panel charge an EV?
Sometimes. Dynamic load controllers and smart splitters can host a charger on a borderline panel by pausing charging when the house is busy. It depends on the load calculation and panel condition — it works around a limit, it doesn’t remove one.
Why does a 40A charger need a 50A circuit?
EV charging is a continuous load — hours at full draw — so code requires the circuit to be sized at 125% of the charger’s rating. 40A × 1.25 = 50A. It’s a safety margin against heat buildup, not an upsell.
A Load Calculation Settles It.
We’ll assess your panel, run the NEC load calculation, and give you a clear written answer — charger-ready, subpanel, or upgrade — with exact pricing before any work begins.
